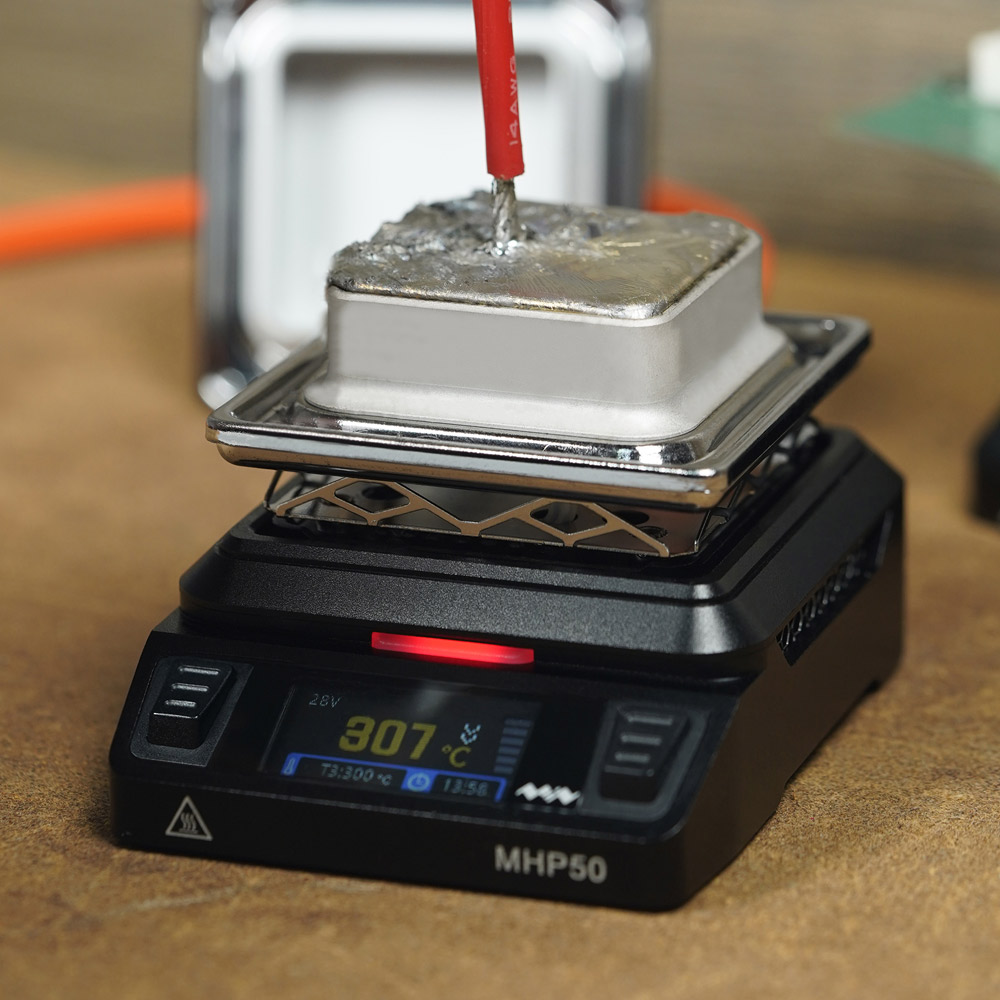

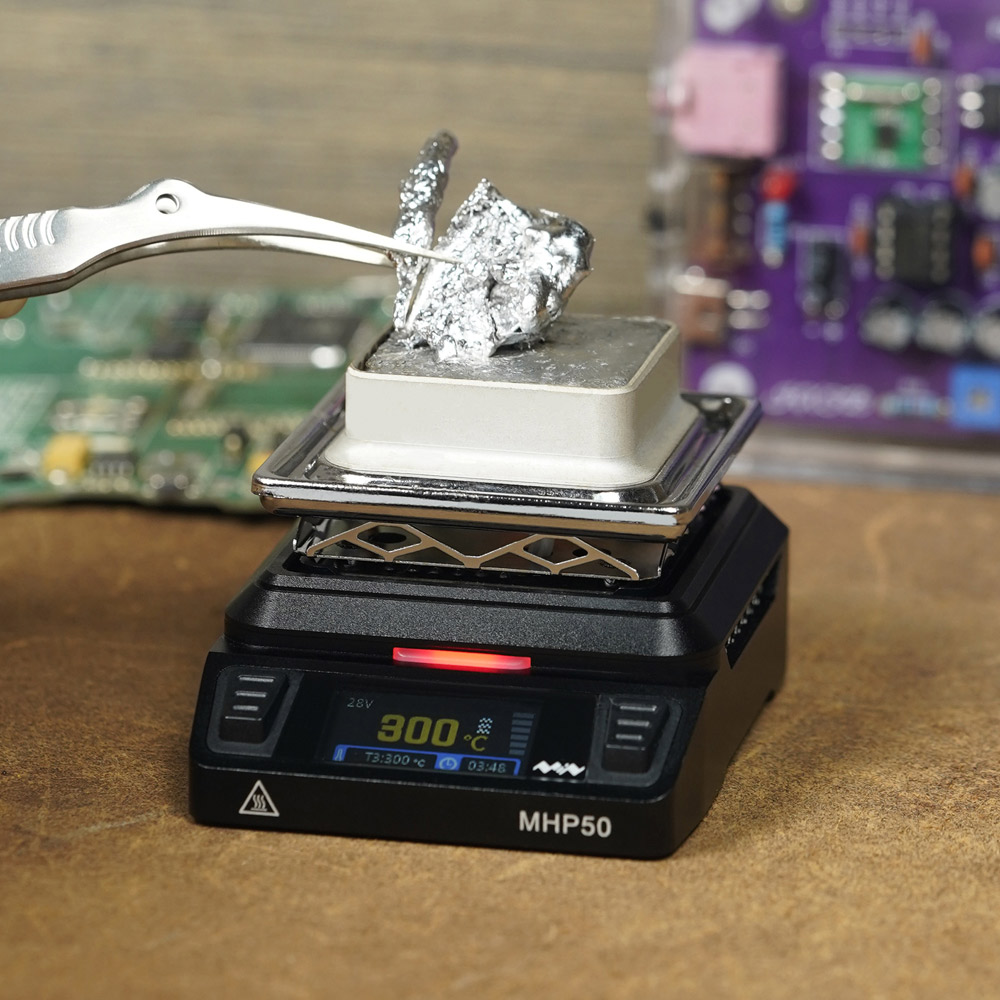

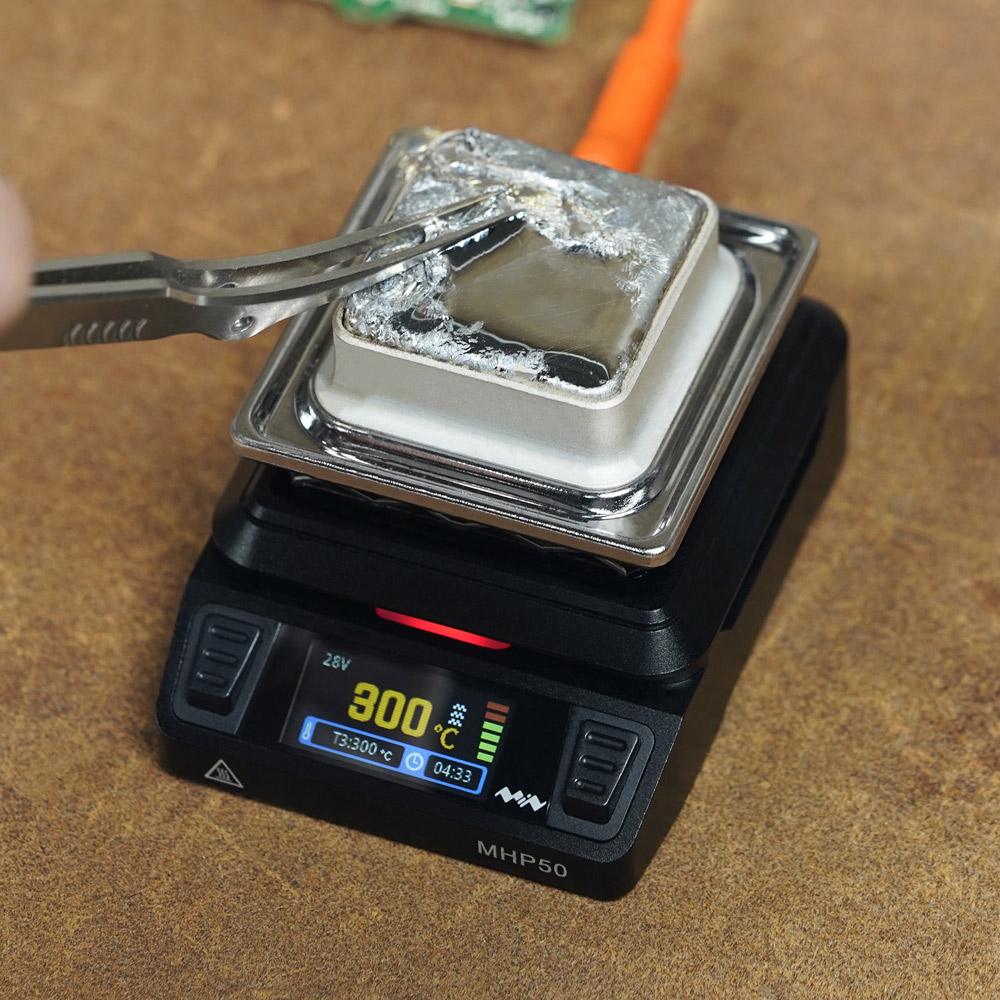

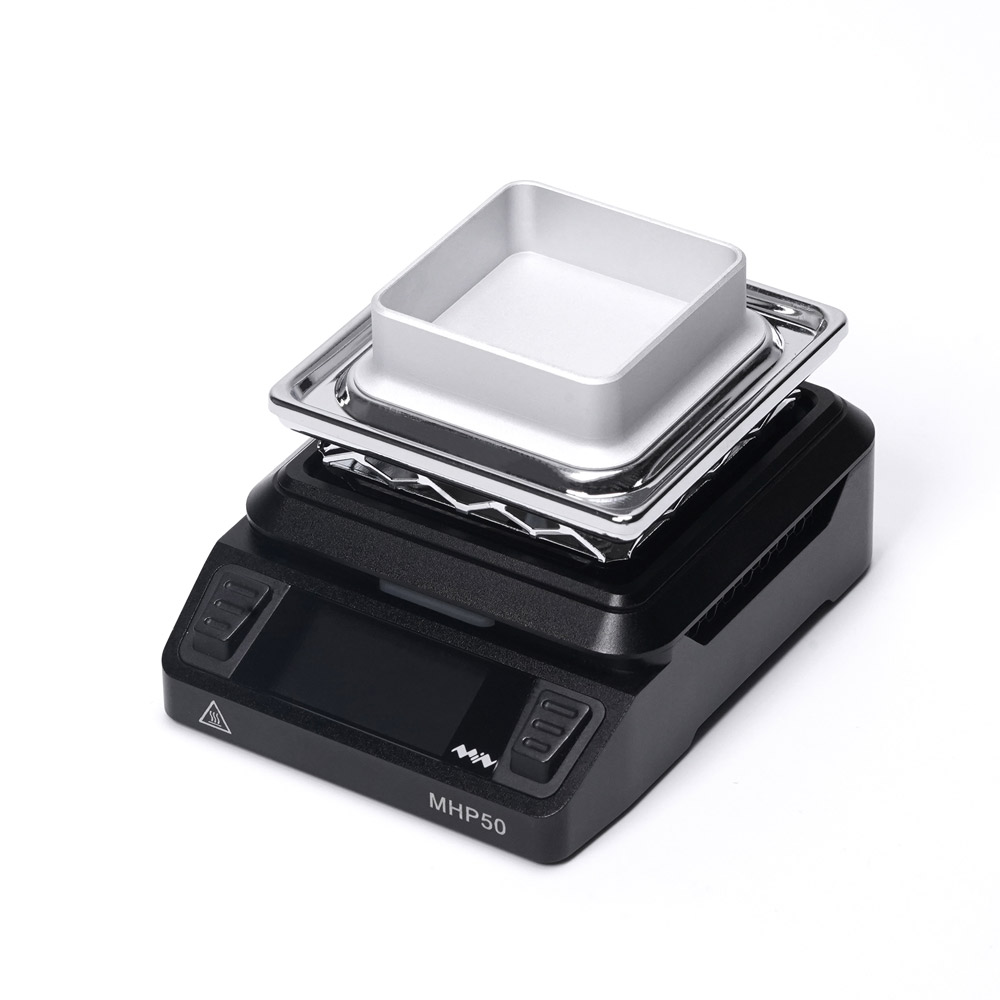

MHP50 Mini Hot Plate Preheater Solder Pot Set
MHP50 Mini Hot Plate Preheater Solder Pot Set
MHP50 Mini Hot Plate Preheater Solder Pot Set
MHP50 Mini Hot Plate Preheater Solder Pot Set

MHP50 Mini Hot Plate Preheater Solder Pot Set

APP connectivity, one-click setting of multiple parameters.

Mini size, 150W high power, faster and more even heating.

Triple-layer heat insulation design for more efficient heat dissipation.

Bendable splash-proof platform for easy cleaning.

Digital screen + gradient color indicator.

Supports Simplified Chinese, English, Russian, and German.

Modular accessories are replaceable: heating table, soldering station, solder pot.

MHP50 Mini Hot Plate Preheater Solder Pot Set

Select the number of specifications

Please check the product information you want!

Use scenarios Specifications and Resources Review Video Package Size Purchase and Collaboration






Performance Parameters:

Soldering Pot Volume: 30×30×9.3mm, integrated above a dedicated heating element


Pot Body Material: High-temperature resistant and corrosion-resistant metal, suitable for long-term soldering contact


Temperature control range: 50°C – 350°C


Soldering Capacity: Approximately 70g


Soldering Performance: Melts completely in approximately 2 minutes, with stable temperature and high work efficiency


Control Terminal Height: Only 3.7cm, flat sandwich design, low center of gravity, stable and not easily tipped over


Insulation System: Hollowed-out stainless steel bracket + hot air guide shroud + temperature-sensitive speed-adjustable high-speed heat-insulating fan, ensuring stable operation over long periods


Interactive Interface: 160×80 color LCD screen + two physical buttons, intuitive operation


Power Supply: DC (5525 interface, 19-24V, 150W) PD (20-28V, 130W)


Product certification: Fully compliant with CE / FCC / UKCA / RoHS

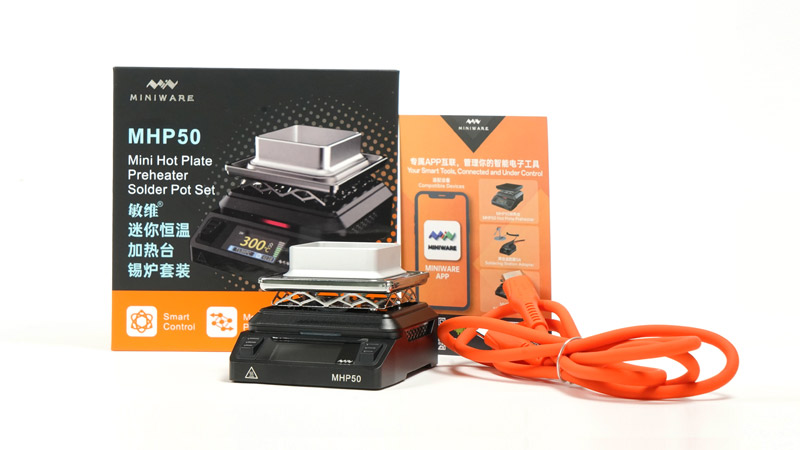

MHP50 Mini Hot Plate Preheater Solder Pot Set Package Includes :


MHP50 controler x1


Power cord x1


Mini solder pot x1


Instruction manual x1


No comment

Previous : MHP50 Mini Soldering Station Adapter
Use scenarios






Specifications and Resources

Performance Parameters:

Soldering Pot Volume: 30×30×9.3mm, integrated above a dedicated heating element


Pot Body Material: High-temperature resistant and corrosion-resistant metal, suitable for long-term soldering contact


Temperature control range: 50°C – 350°C


Soldering Capacity: Approximately 70g


Soldering Performance: Melts completely in approximately 2 minutes, with stable temperature and high work efficiency


Control Terminal Height: Only 3.7cm, flat sandwich design, low center of gravity, stable and not easily tipped over


Insulation System: Hollowed-out stainless steel bracket + hot air guide shroud + temperature-sensitive speed-adjustable high-speed heat-insulating fan, ensuring stable operation over long periods


Interactive Interface: 160×80 color LCD screen + two physical buttons, intuitive operation


Power Supply: DC (5525 interface, 19-24V, 150W) PD (20-28V, 130W)


Review Video
Package Size

Product certification: Fully compliant with CE / FCC / UKCA / RoHS


MHP50 Mini Hot Plate Preheater Solder Pot Set Package Includes :


MHP50 controler x1


Power cord x1


Mini solder pot x1


Instruction manual x1
