TS1C Cordless Soldering Station
TS1C Cordless Soldering Station
TS1C Cordless Soldering Station
TS1C Cordless Soldering Station

TS1C Cordless Soldering Station

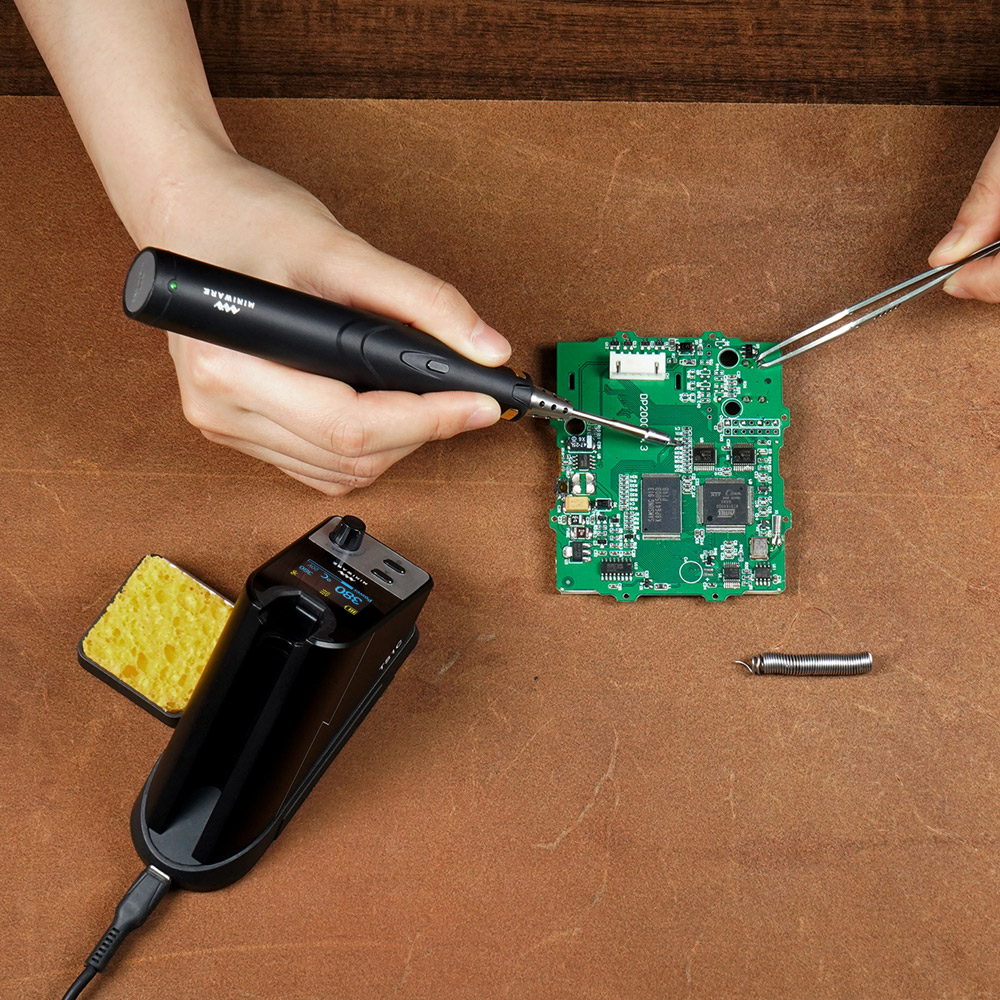

Introduced by MINIWARE in May 2023, the TS1C marks a breakthrough in wireless soldering technology.

Designed as a complete workstation, TS1C maximizes efficiency through a modular layout:
Control Staion: Serves as both a charging dock and iron stand;
Soldering Handle:the wireless iron uses TS80P series tips;
Sponge holder:can be mounted in three orientations;
Powered by a 750F lithium-ion capacitor cell, the iron supports up to 100,000 charge cycles with a 1:1 charge-to-use ratio, enablin

TS1C Cordless Soldering Station

Select the number of specifications

Please check the product information you want!

Product Details Specifications and Resources Review Video Package Size Purchase and Collaboration










Control Station:

Standard PD2 20V 45W MAX power input, over current safety protection；

128*64 pixel OLED screen, display soldering pen status in real time;

Control station preheating, improve heating efficiency;

Remote control and setting: temperature regulating, menu setting, viewing device info and status, etc.;

Work as soldering stand and charging station;

3 expansion slots for multiple expandable accessories like sponge slot;



Soldering Pen:

Built-in 750F high-efficiency energy storage supercapacitor, can be charged via control station (or via its USB Type-C interface in emergency cases)；

36W maximum heating power, can solder more than 180 solder joints (0805) continuously  under a single full charge;

Compatible with MINIWARE 3.5mm audio interface soldering tips (TS80/80P soldering tip series);

Boost mode (holding the button on the pen);

Multiple intelligent safety protections: over-temperature protection, capacitor under-voltage protection, charging protection, etc.


User Manual download: Click here to download

Product certification: Fully compliant with CE / FCC / UKCA / RoHS standards



TS1C Cordless Soldering Station Set:

TS1C Soldering Pen X 1

TS1C Control Station X 1

Soldering Tip (TS-B02) X 1

Sponge Slot X 1

Silicone Cable X 1

User Manual X 1


No comment

Previous : TS101 Smart Soldering Iron Next : TS21 Precision Soldering Iron
Product Details










Specifications and Resources

Control Station:

Standard PD2 20V 45W MAX power input, over current safety protection；

128*64 pixel OLED screen, display soldering pen status in real time;

Control station preheating, improve heating efficiency;

Remote control and setting: temperature regulating, menu setting, viewing device info and status, etc.;

Work as soldering stand and charging station;

3 expansion slots for multiple expandable accessories like sponge slot;



Soldering Pen:

Built-in 750F high-efficiency energy storage supercapacitor, can be charged via control station (or via its USB Type-C interface in emergency cases)；

36W maximum heating power, can solder more than 180 solder joints (0805) continuously  under a single full charge;

Compatible with MINIWARE 3.5mm audio interface soldering tips (TS80/80P soldering tip series);

Boost mode (holding the button on the pen);

Multiple intelligent safety protections: over-temperature protection, capacitor under-voltage protection, charging protection, etc.


User Manual download: Click here to download

Review Video
Package Size

Product certification: Fully compliant with CE / FCC / UKCA / RoHS standards



TS1C Cordless Soldering Station Set:

TS1C Soldering Pen X 1

TS1C Control Station X 1

Soldering Tip (TS-B02) X 1

Sponge Slot X 1

Silicone Cable X 1

User Manual X 1


Purchase and Collaboration

TS1C Cordless Soldering Station
Introduced by MINIWARE in May 2023, the TS1C marks a breakthrough in wireless soldering technology.

Designed as a complete workstation, TS1C maximizes efficiency through a modular layout:
Control Staion: Serves as both a charging dock and iron stand;
Soldering Handle:the wireless iron uses TS80P series tips;
Sponge holder:can be mounted in three orientations;
Powered by a 750F lithium-ion capacitor cell, the iron supports up to 100,000 charge cycles with a 1:1 charge-to-use ratio, enablin
